Wood Frame

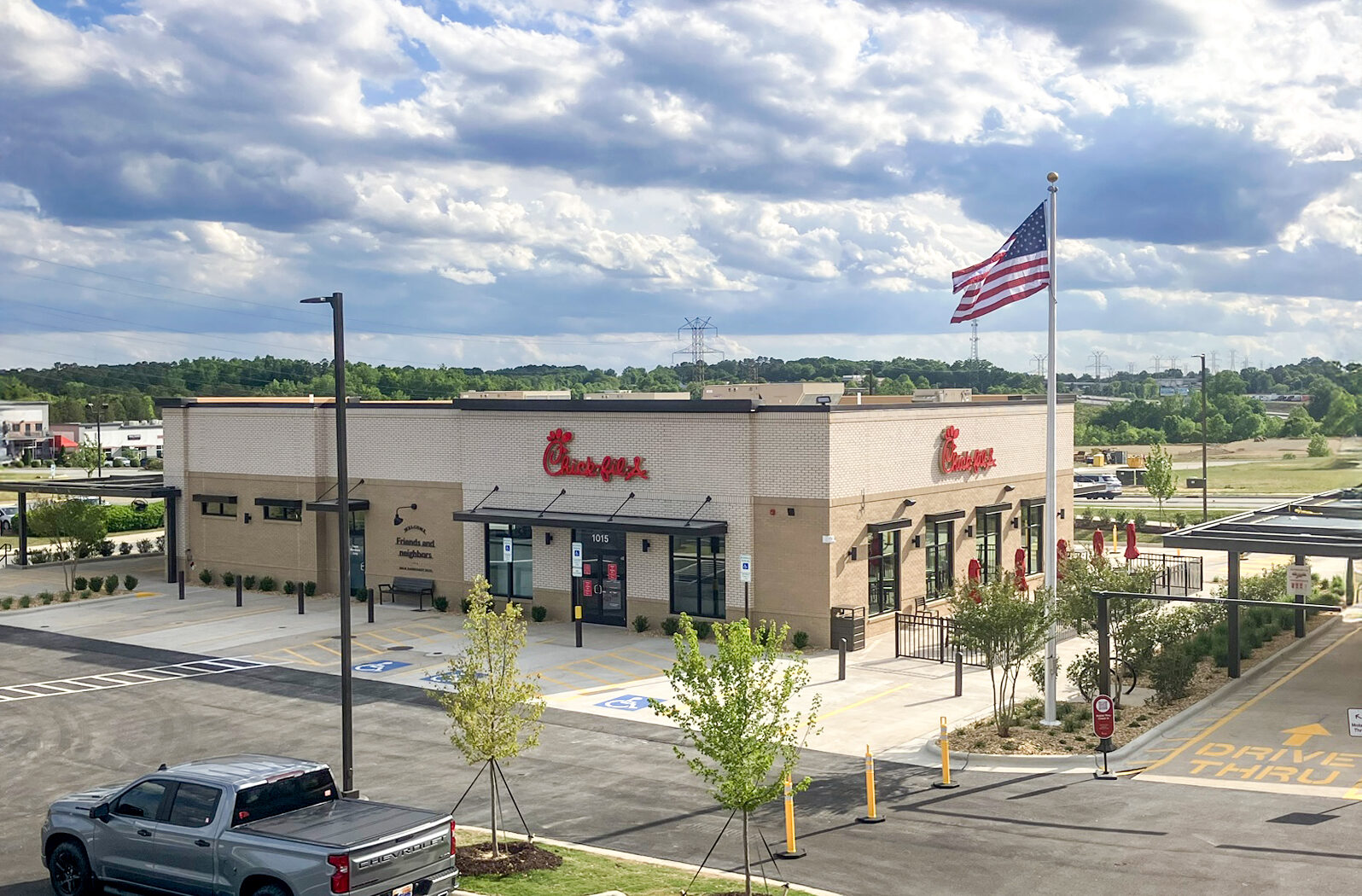

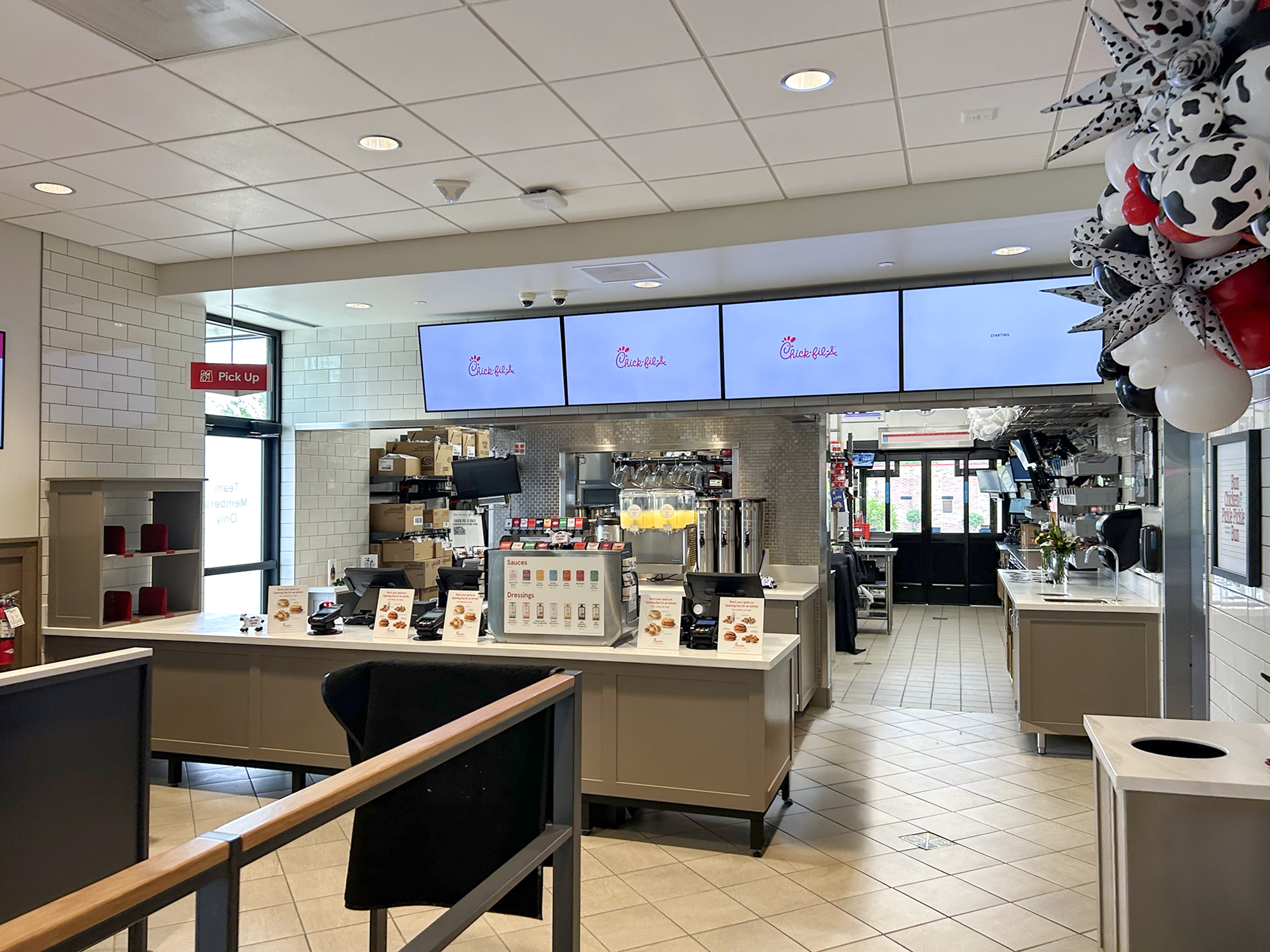

This new freestanding restaurant features a concrete slab and footings, CMU, brick veneer, steel columns, wood framing, and a membrane roof. Interiors included finishes, kitchen equipment coordination, and associated infrastructure.
Project Scope
Soil Nail Wall

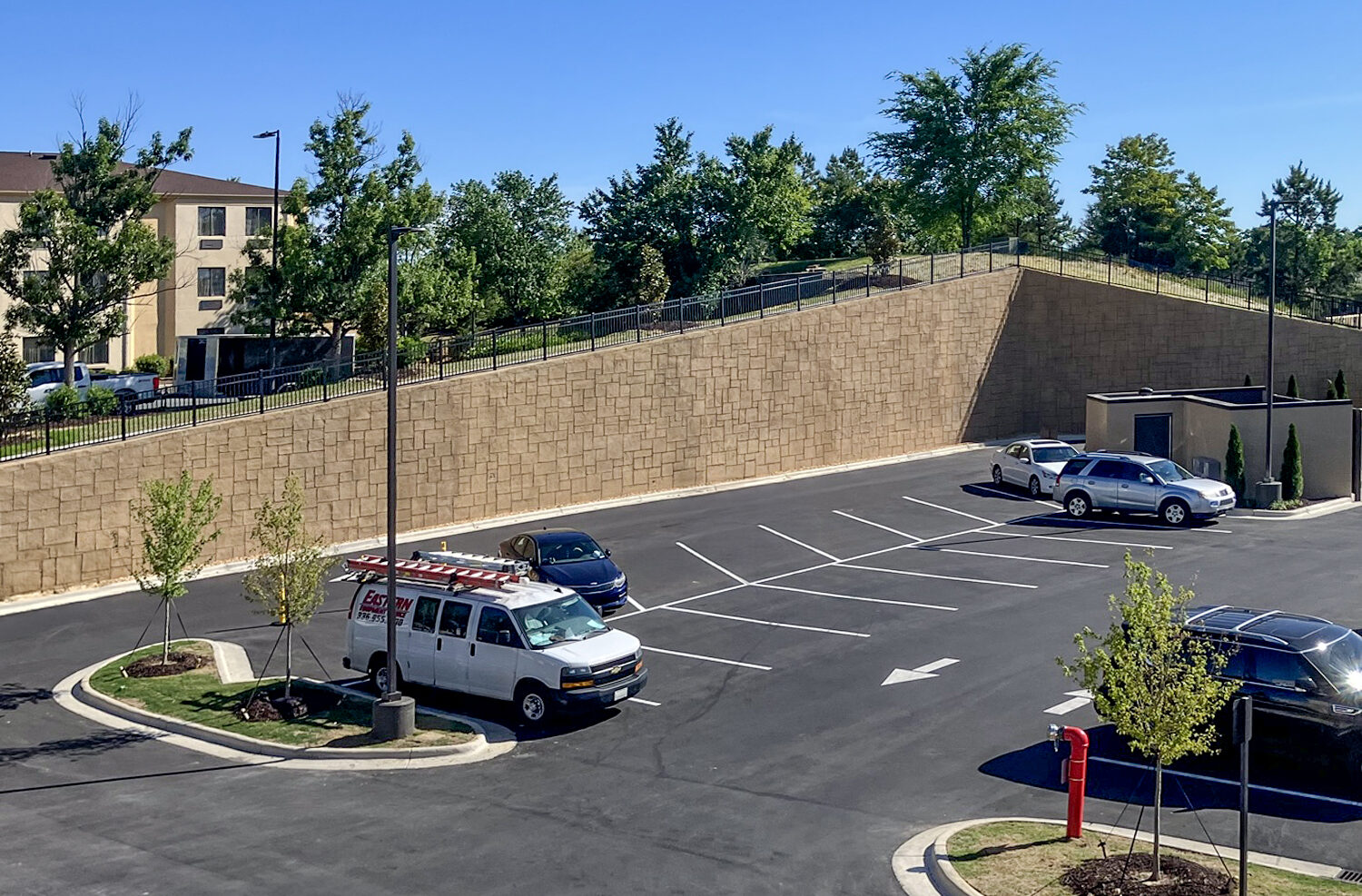

A 200 ft long, 26 ft tall soil nail wall was constructed with a concrete face. The wall is supported by 100 soil nails, each 20 ft long, drilled and grouted into the ground and encapsulated with shotcrete. Additional concrete was applied to create the architectural pattern, followed by a painted finish.
Site Work

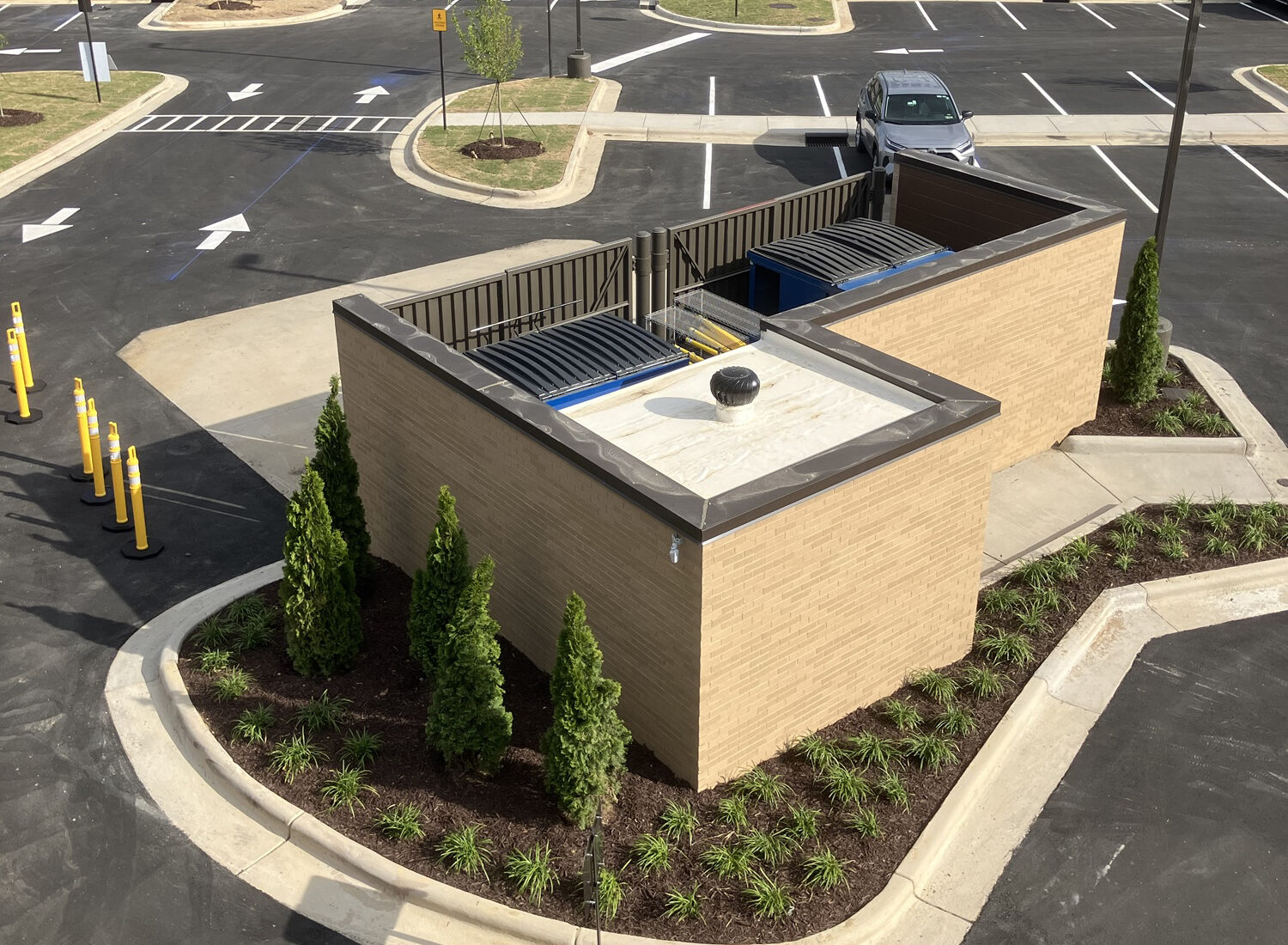

Additional site work consisted of clearing, grading, utilities, paving, underground grease trap, landscaping, and irrigation.
Project Gallery
Project Details
Owner
Chick-fil-A
Architect
E+H Architects
Size
5,200 SF
Location
Concord, NC
